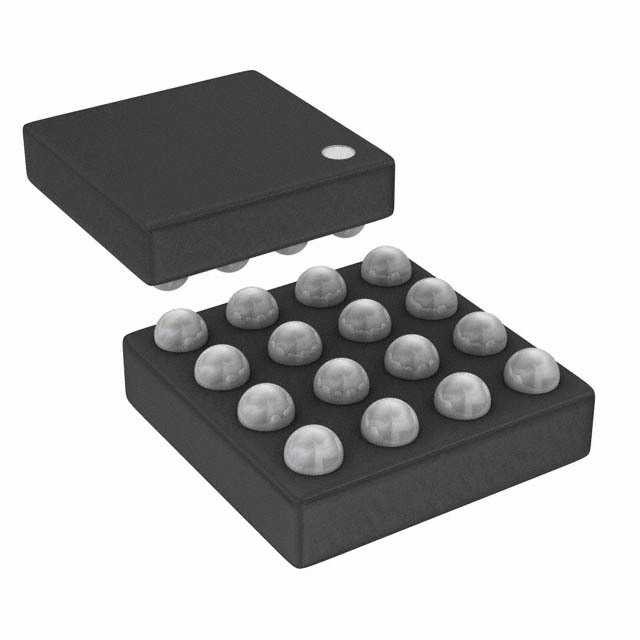

ADP5030ACBZ-1228R7

SKU: 17698

Manufacturer: Analog Devices

LDO Regulator Pos 1.2V2.8V 0.2A/0.2A 16-Pin WLCSP T/R

3580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	2
Polarity	Positive
Accuracy (%)	±0.7
Output Type	Fixed
Output Voltage (V)	1.2
Maximum Output Current (A)	0.2
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.013@10mA
Line Regulation	0.01%/V
Load Regulation	0.001%/mA(Typ)
Junction to Ambient	66.6°C/W
Special Features	Over Current Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	16
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.4
Package Length	1.56
Package Width	1.56
PCB changed	16
