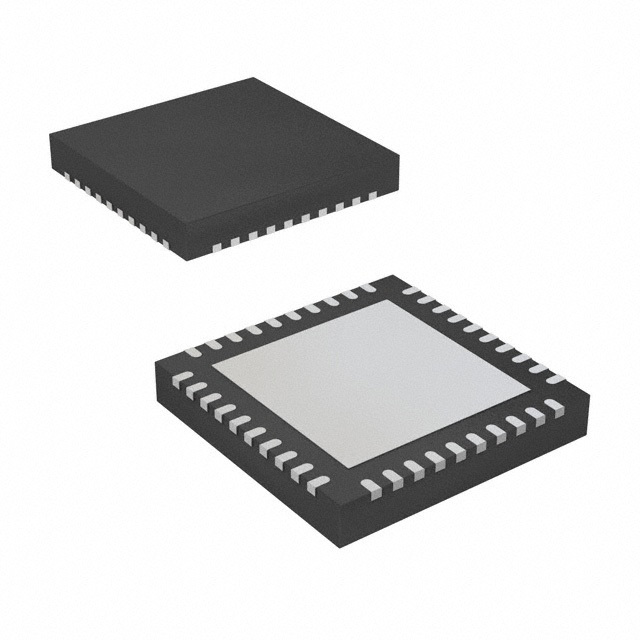

ADP5014ACPZ-R7

SKU: 44224

Manufacturer: Analog Devices

Conv DC-DC 2.75V to 6V Step Down Quad-Out 0.5V to 5.4V 2A/4A/1A/2A 40-Pin LFCSP EP T/R

4230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	500 to 2500
Switching Regulator	Yes
Number of Outputs	4
Output Voltage (V)	0.5 to 5.4
Maximum Output Current (A)	2
Minimum Input Voltage (V)	2.75
Maximum Input Voltage (V)	6
Operating Supply Voltage (V)	2.75 to 6
Typical Quiescent Current (uA)	5400
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	40
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
PCB changed	40
