ADP3303ARZ-3.3REEL

SKU: 95387

Manufacturer: Analog Devices

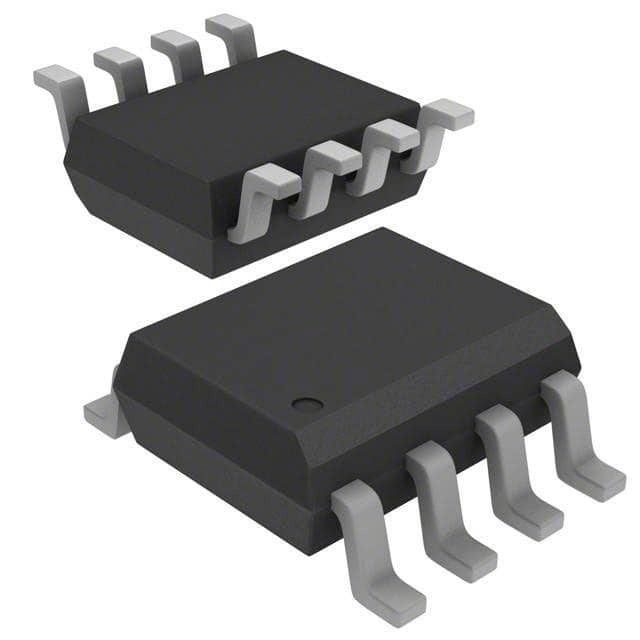

LDO Regulator Pos 3.3V 0.2A 8-Pin SOIC N T/R

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.8
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.2(Min)
Minimum Input Voltage (V)	3.2
Maximum Input Voltage (V)	12
Maximum Dropout Voltage @ Current (V)	0.03@1mA
Line Regulation	0.01mV/V(Typ)
Load Regulation	0.013mV/mA(Typ)
Junction to Ambient	96°C/W
Junction to Case	55°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
