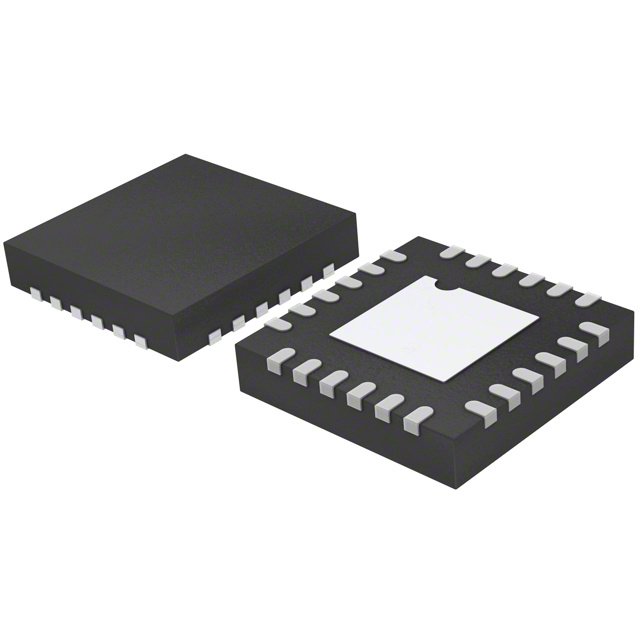

ADP2311ACPZ-4-R7

SKU: 86567

Manufacturer: Analog Devices

Conv DC-DC 4.5V to 18V Synchronous Step Down Dual-Out 0.6V to 18V 1A/1A 24-Pin LFCSP EP T/R

1490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	350
Switching Regulator	Yes
Number of Outputs	2
Output Voltage (V)	0.6 to 18
Maximum Output Current (A)	1
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	18
Typical Switch Current (A)	2.6
Typical Quiescent Current (uA)	1200
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	24
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	24
