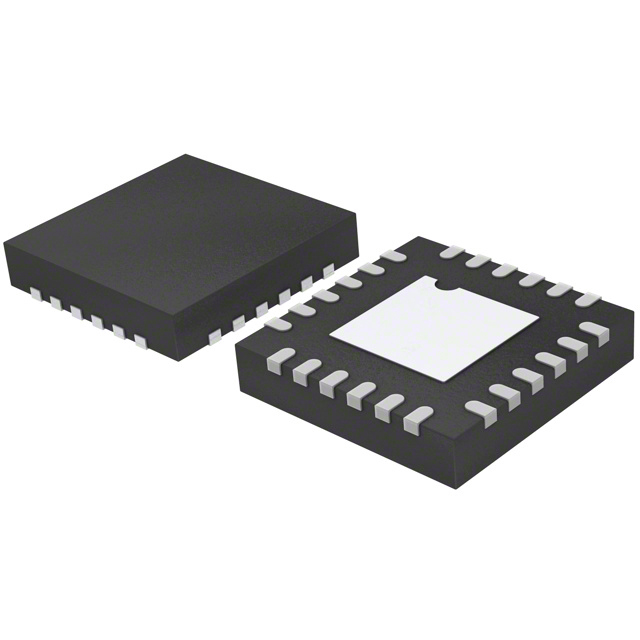

ADP2166ACPZ-R7

SKU: 65429

Manufacturer: Analog Devices

Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.6V to 4.95V 6A 24-Pin LFCSP EP T/R

810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	250 to 1400
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 4.95
Maximum Output Current (A)	6
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5.5
Typical Quiescent Current (uA)	2000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	24
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	24
