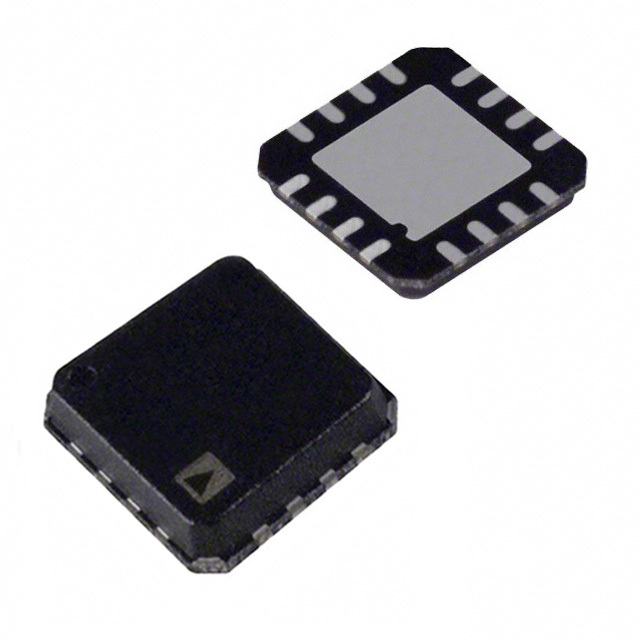

ADP2106ACPZ-R7

SKU: 22914

Manufacturer: Analog Devices

Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.8V to 5.5V 1.5A 16-Pin LFCSP EP T/R

1750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1200(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 5.5
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5.5
Typical Quiescent Current (uA)	20
Line Regulation	0.3%/V
Load Regulation	0.5%/A(Typ)
Efficiency (%)	97
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	16
