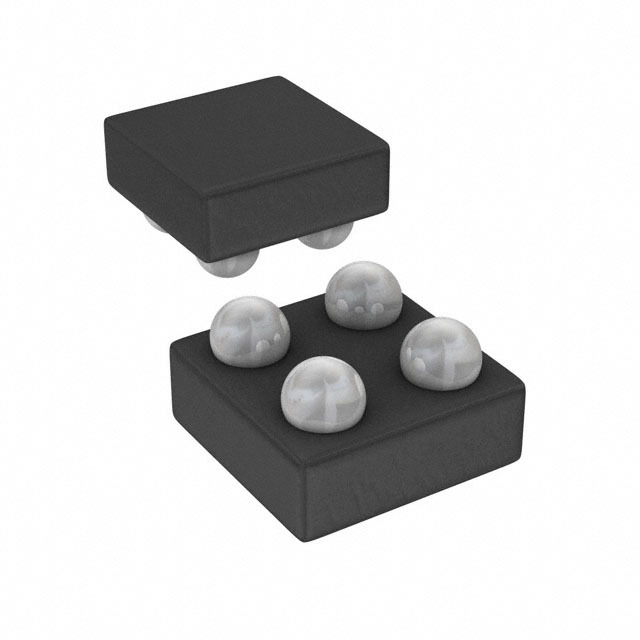

ADP199ACBZ-R7

SKU: 129023

Manufacturer: Analog Devices

Power Switch Hi Side 1-OUT 0.5A 0.04Ohm 4-Pin WLCSP T/R

3930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	High Side
Number of Outputs	1
Minimum Input Voltage (V)	0.9
Maximum Input Voltage (V)	3.6
Output Voltage Range (V)	-0.3 to 4
Operating Supply Voltage Range (V)	0.9 to 3.6
Minimum Output Current (A)	0.5(Typ)
Supply Current (mA)	500
Switch On Resistance (Ohm)	0.04
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	4
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.3
Package Length	0.76
Package Width	0.76
PCB changed	4
