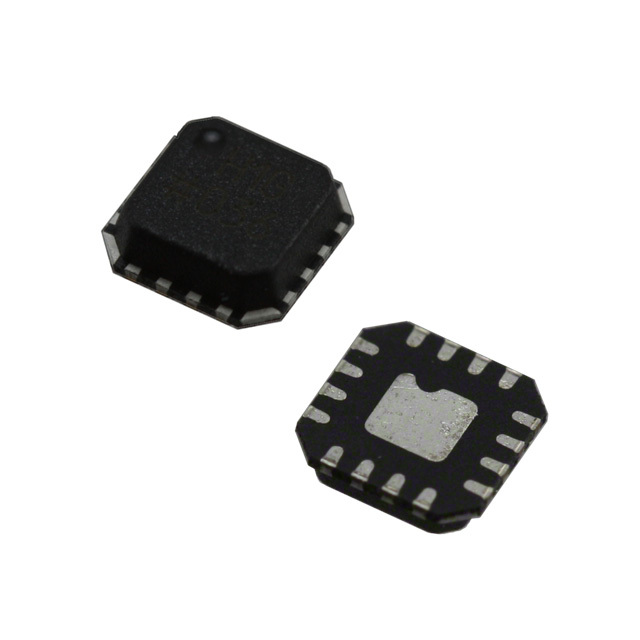

ADP1765ACPZ-R7

SKU: 22913

Manufacturer: Analog Devices

LDO Regulator Pos 0.5V to 1.5V 5A 16-Pin LFCSP EP T/R

3520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.75
Process Technology	CMOS
Output Type	Adjustable
Output Voltage (V)	0.5 to 1.5
Maximum Output Current (A)	5
Minimum Input Voltage (V)	1.1
Maximum Input Voltage (V)	1.98
Maximum Dropout Voltage @ Current (V)	0.075@4A
Line Regulation	0.1%/V
Load Regulation	0.12%/A(Typ)
Typical Ground Current @ Full Load (mA)	12
Junction to Ambient	40.65°C/W
Junction to Case	7.47°C/W
Special Features	Short Circuit Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	16
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	16
