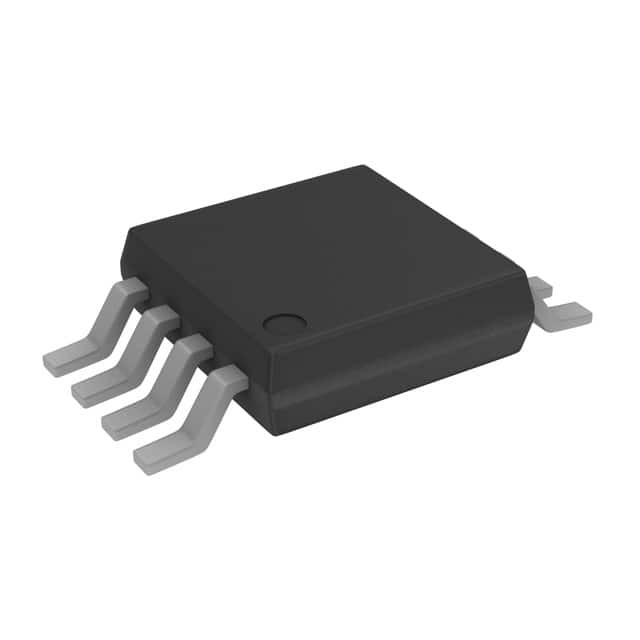

ADP1612ARMZ-R7

SKU: 67214

Manufacturer: Analog Devices

Conv DC-DC 1.8V to 5.5V Step Up Single-Out 1.8V to 20V 1.4A 8-Pin MSOP T/R

2260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Up
Output Type	Adjustable
Switching Frequency (kHz)	1300(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.8 to 20
Minimum Input Voltage (V)	1.8
Maximum Input Voltage (V)	5.5
Typical Quiescent Current (uA)	900
Line Regulation	0.07%/V(Typ)
Load Regulation	0.1mV/mA(Typ)
Efficiency (%)	94
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
