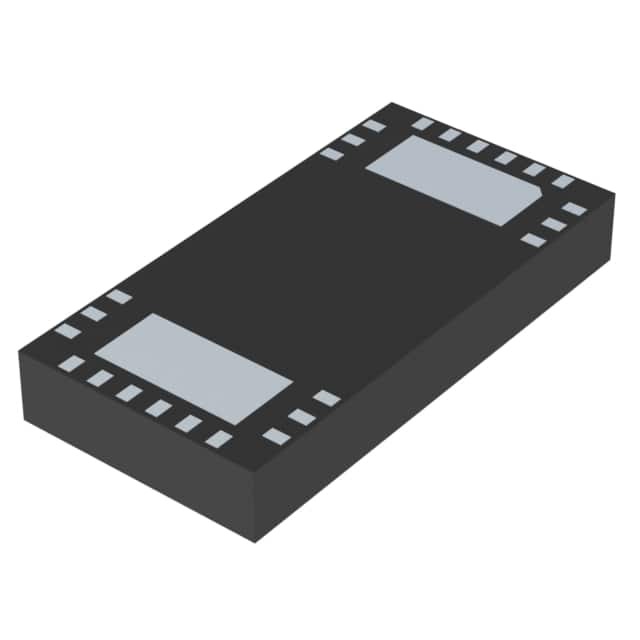

ADP1071-2ACCZ

SKU: 107740

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Flyback 600kHz 24-Pin LGA Tray

3670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Flyback
Maximum Switching Frequency (kHz)	600
Minimum Input Voltage (V)	4.5
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	4.5 to 36
Maximum Supply Current (mA)	3.8(Typ)
Typical Quiescent Current (mA)	16.6
Minimum Switching Frequency (kHz)	100
Typical Switching Frequency (kHz)	600
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	LGA
Pin Count	24
Terminal Form	Surface Mount
Package Height	1.03
Package Length	8
Package Width	4
