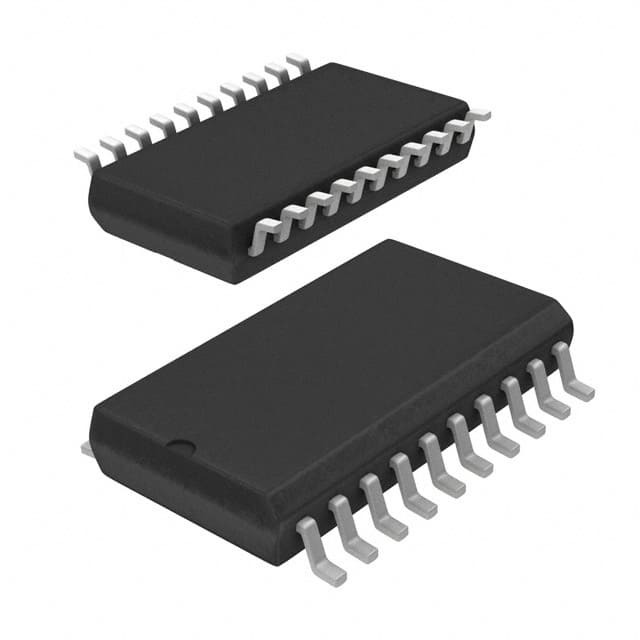

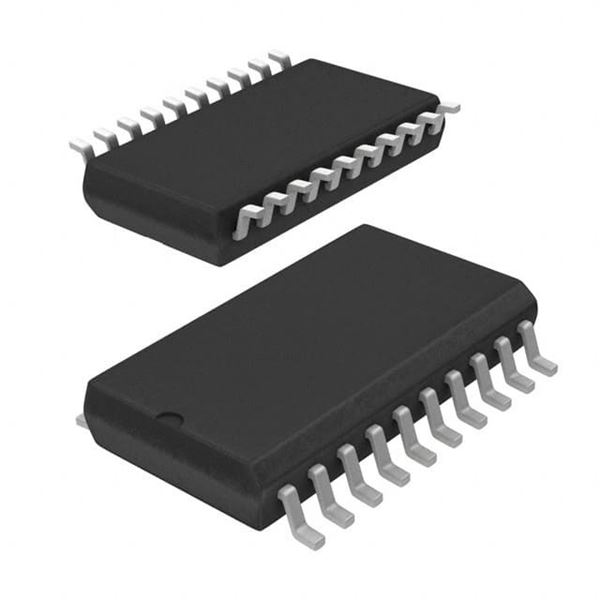

ADN4655BRWZ

SKU: 24698

Manufacturer: Analog Devices

LVDS Buffer 1250Mbps 0.45V 20-Pin SOIC W Tube

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Buffer
Transmission Data Rate (Mbps)	1250
Maximum Propagation Delay Time (ns)	4.5
Input Signal Type	LVDS
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Differential Input Low Threshold Voltage (V)	-0.1(Min)
Differential Input High Threshold Voltage (V)	0.1(Max)
Maximum Differential Output Voltage (V)	0.45
Typical Operating Supply Voltage (V)	3.3
Maximum Input Current (uA)	5
Maximum Power Dissipation (mW)	2780
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	SOIC W
Pin Count	20
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	13(Max)
Package Width	7.6(Max)
PCB changed	20
