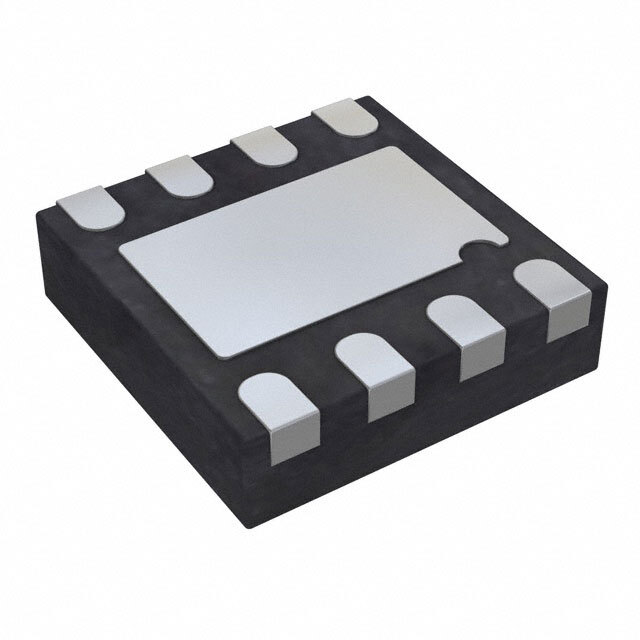

ADM7172ACPZ-1.8-R7

SKU: 107735

Manufacturer: Analog Devices

LDO Regulator Pos 1.8V 2A Medical 8-Pin LFCSP EP T/R

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1.5
Process Technology	CMOS
Output Type	Fixed
Output Voltage (V)	1.8
Maximum Output Current (A)	2
Minimum Input Voltage (V)	2.3
Maximum Input Voltage (V)	6.5
Maximum Dropout Voltage @ Current (V)	0.27@2A
Line Regulation	0.1%/V
Load Regulation	0.3%/A
Junction to Ambient	36.4°C/W
Junction to Case	23.5°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	8
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	3
Package Width	3
PCB changed	8
