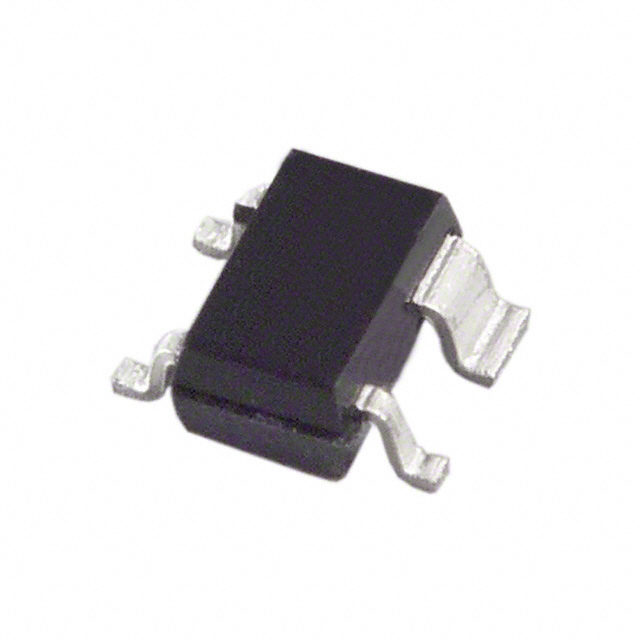

ADM6384YKS17D3Z-R7

SKU: 137976

Manufacturer: Analog Devices

Processor Supervisor 1.67V 1 Active Low/Push-Pull 4-Pin SC-70 T/R

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	280
Output Driver	Active Low/Push-Pull
Minimum Reset Threshold Voltage (V)	1.62
Typical Reset Threshold Voltage (V)	1.67
Maximum Reset Threshold Voltage (V)	1.71
Monitored Voltage (V)	1 to 5.5
Operating Supply Voltage-Min (V)	1
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (uA)	13
Power Fail Detection	No
Watchdog Timer	No
Manual Reset	Yes
Chip Enable Signals	No
Battery Backup Switching	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Type	Power Supply Monitor
Original Package	SC-70
Pin Count	4
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
PCB changed	4
