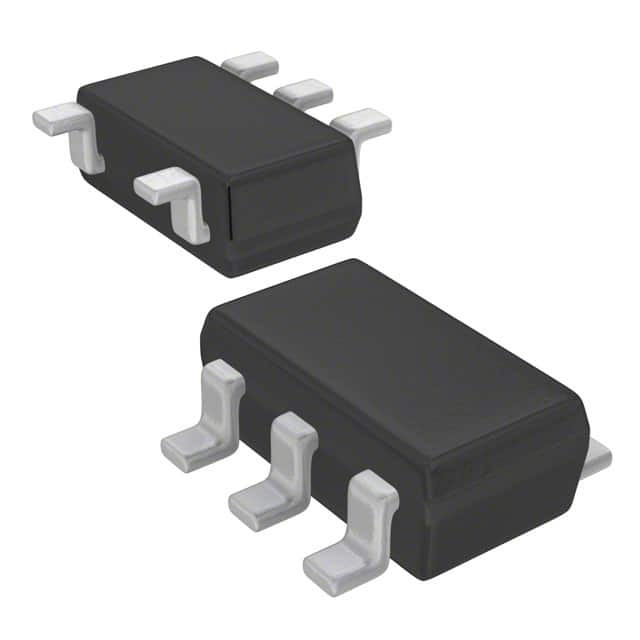

ADM6316CY29ARJZ-R7

SKU: 144978

Manufacturer: Analog Devices

Processor Supervisor 2.93V 1 Active Low/Push-Pull 5-Pin SOT-23 T/R

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Supervisors	1
Maximum Reset Active Time (ms)	280
Output Driver	Active Low/Push-Pull
Minimum Reset Threshold Voltage (V)	2.886
Typical Reset Threshold Voltage (V)	2.93
Maximum Reset Threshold Voltage (V)	2.974
Monitored Voltage (V)	1 to 5.5
Operating Supply Voltage-Min (V)	1
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (uA)	20
Power Fail Detection	No
Watchdog Timer	Yes
Manual Reset	Yes
Chip Enable Signals	No
Battery Backup Switching	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Type	Voltage Monitor
Pin Count	5
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	5
