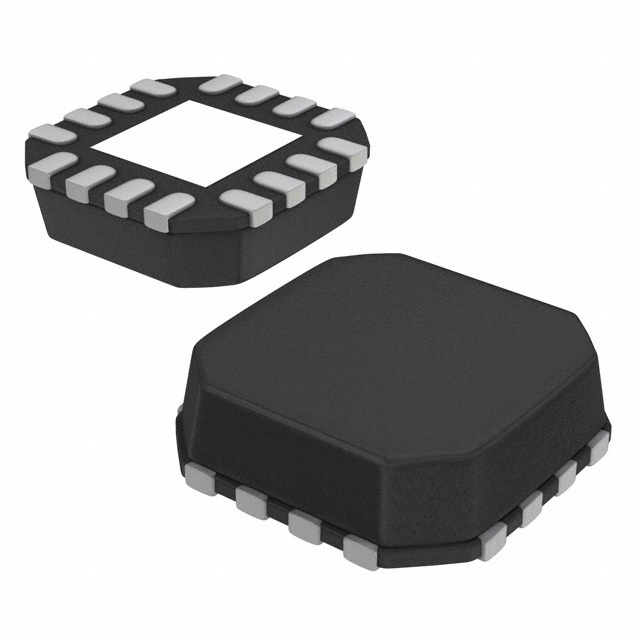

ADL5561ACPZ-WP

SKU: 157445

Manufacturer: Analog Devices

SP Amp DIFF AMP Single 3.6V 16-Pin LFCSP EP Tray

1010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	4
Number of Channels per Chip	1
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	65(Typ)
Output Type	Differential
Operating Supply Voltage-Max (V)	3.6
Maximum Supply Voltage Range (V)	<5
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Minimum DC Continuous Isolation Voltage (V)	60(Typ)@3.3V
Maximum Input Bias Current (uA)	3(Typ)@3.3V
Maximum Input Resistance (MOhm)	0.0004(Typ)@3.3V
Maximum Power Dissipation (mW)	155
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Power Supply Type	Single
Original Package	LFCSP EP
Pin Count	16
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	3
Package Width	3
PCB changed	16
