ADL5536ARKZ-R7

SKU: 95348

Manufacturer: Analog Devices

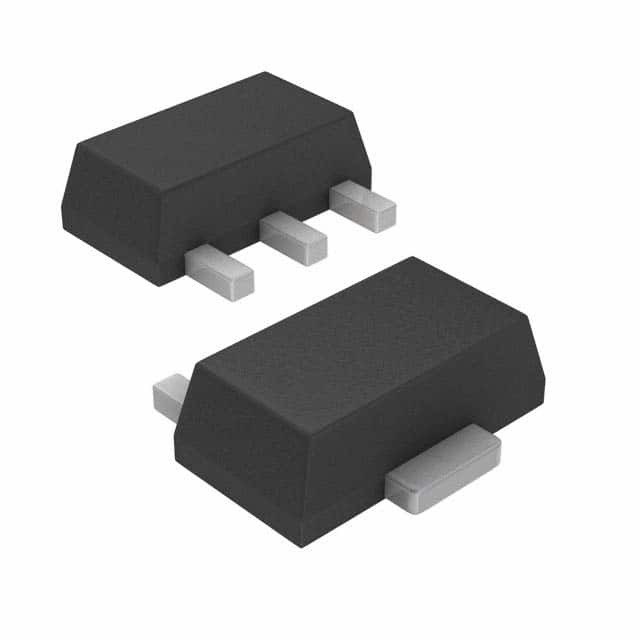

RF Amp Single Linear Amp 1GHz 5.5V 4-Pin(3+Tab) SOT-89 T/R

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Linear Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	1000
Typical Power Gain (dB)	18.1@1000MHz
Typical Output Power (dBm)	19.7@1000MHz
Typical Output Intercept Point (dBm)	40.5@1000MHz
Typical Noise Figure (dB)	2.8@1000MHz
Operating Supply Voltage-Max (V)	5.5
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	530(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-89
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	4.6(Max)
Package Width	2.6(Max)
PCB changed	3
Tab	Tab
