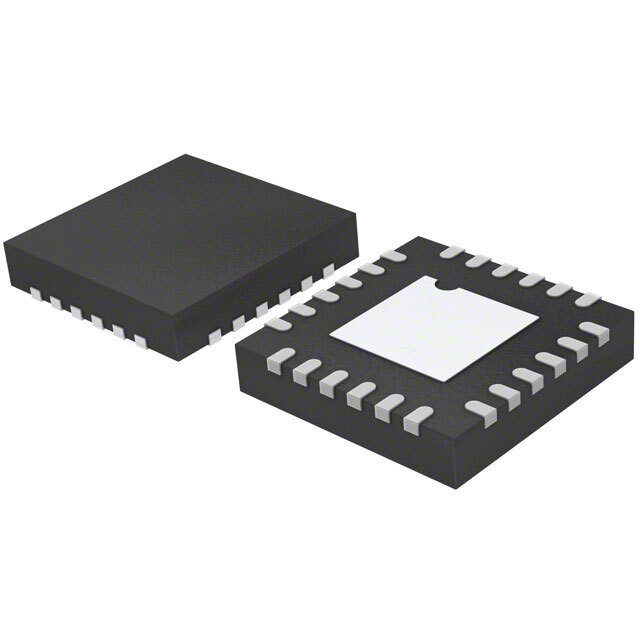

ADL5390ACPZ-REEL7

SKU: 45997

Manufacturer: Analog Devices

Vector Mod 2.4GHz 24-Pin LFCSP EP T/R

1890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b
Part Status	Active
HTS	8542.39.0001
Automotive	No
PPAP	No
Device Type	Modulator
Modulation Type	Vector
Programmability	No
Maximum I/Q Frequency (MHz)	2400
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Current (A)	0.135(Typ)
Maximum Power Dissipation (mW)	825
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Original Package	LFCSP EP
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	24
