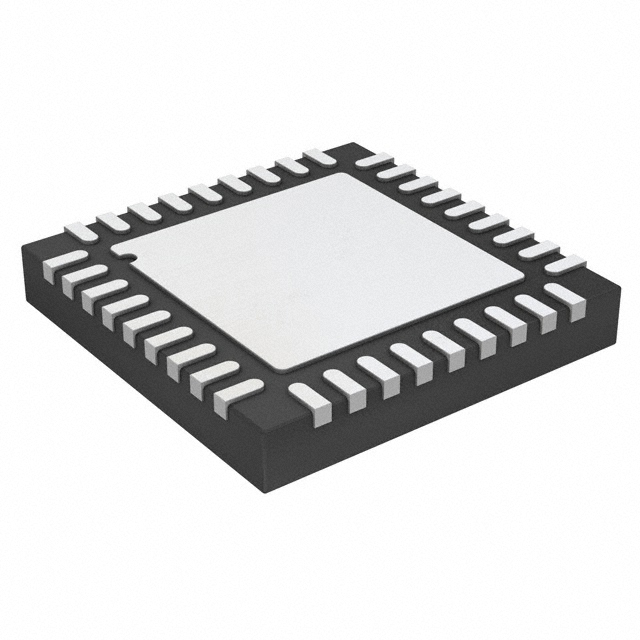

ADL5356ACPZ-R7

SKU: 123717

Manufacturer: Analog Devices

Up/Down Conv Mixer 3.3V/5V 2.5GHz 36-Pin LFCSP EP T/R

420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Minimum Input Frequency (MHz)	1200
Maximum Input Frequency (MHz)	2500
Minimum Output Frequency (MHz)	30
Maximum Output Frequency (MHz)	450
Maximum Conversion Gain (dB)	8.5
Typical Noise Figure (dB)	9.9
Typical Third Order Input Intercept Point (dBm)	31
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	2200
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	CSP
Original Package	LFCSP EP
Pin Count	36
Terminal Form	Surface Mount
Package Height	0.83
Package Length	6
Package Width	6
PCB changed	36
