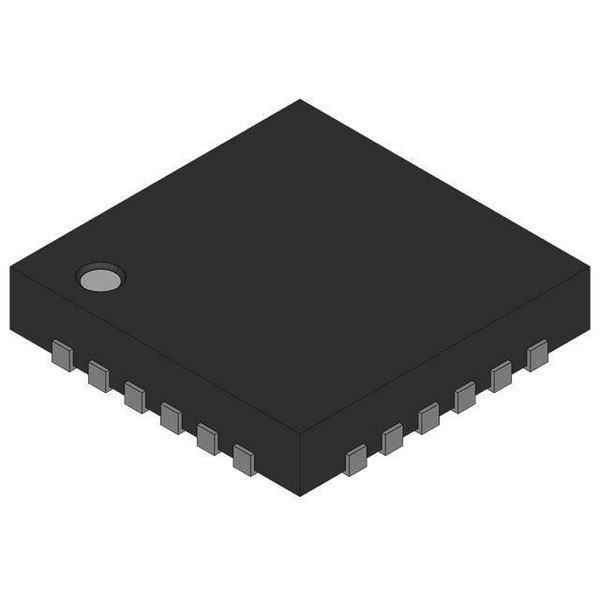

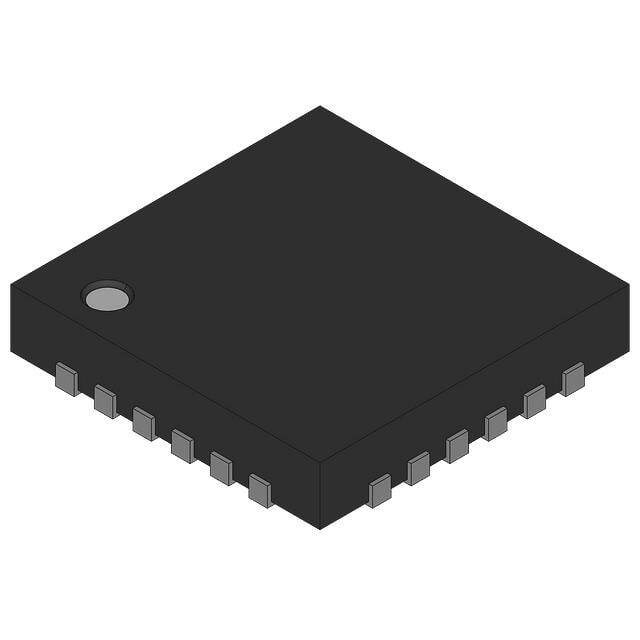

ADL5330ACPZ-R2

SKU: 95343

Manufacturer: Analog Devices

RF Amp Single VGA 3GHz 5.25V 24-Pin LFCSP EP T/R

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Variable Gain Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	3000
Typical 3dB Bandwidth (MHz)	3000
Typical Gain Flatness (dB)	0.3
Typical Power Gain (dB)	32@2700MHz
Typical Output Intercept Point (dBm)	17@2700MHz
Maximum Input Return Loss (dB)	9.7(Typ)@2700MHz
Maximum Output Return Loss (dB)	5(Typ)@2700MHz
Typical Noise Figure (dB)	14.7@2700MHz
Operating Supply Voltage-Max (V)	5.25
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Supply Current (mA)	215(Typ)@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	1100
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	24
