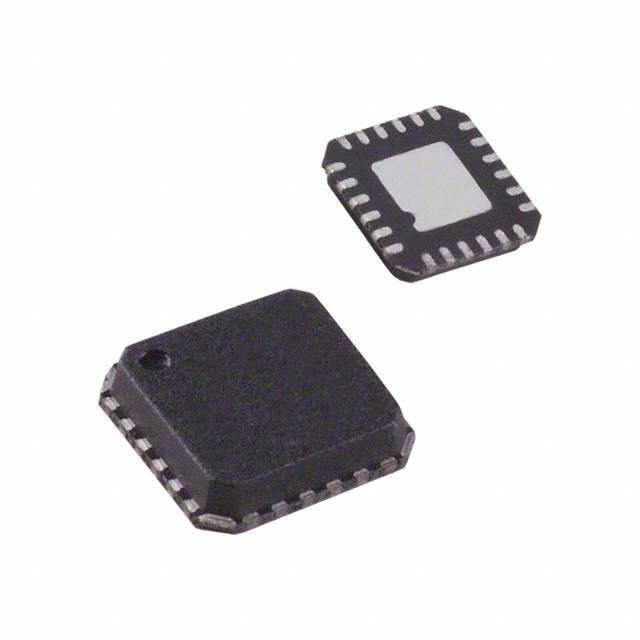

ADL5310ACPZ-REEL7

SKU: 53162

Manufacturer: Analog Devices

SP Amp LOG Amp Dual R-R O/P ±5.5V/12V 24-Pin LFCSP EP T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Logarithmic Amplifier
Number of Elements per pcs	6
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Typical Output Current (mA)	20@5V
Maximum Input Offset Voltage (mV)	20@5V
Operating Supply Voltage-Max (V)	12
Maximum Supply Voltage Range (V)	10 to 15
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.5
Maximum Input Bias Current (uA)	0.4(Typ)@5V
Maximum Input Resistance (MOhm)	35(Typ)@5V
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Power Supply Type	Dual
Pin Count	24
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	24
