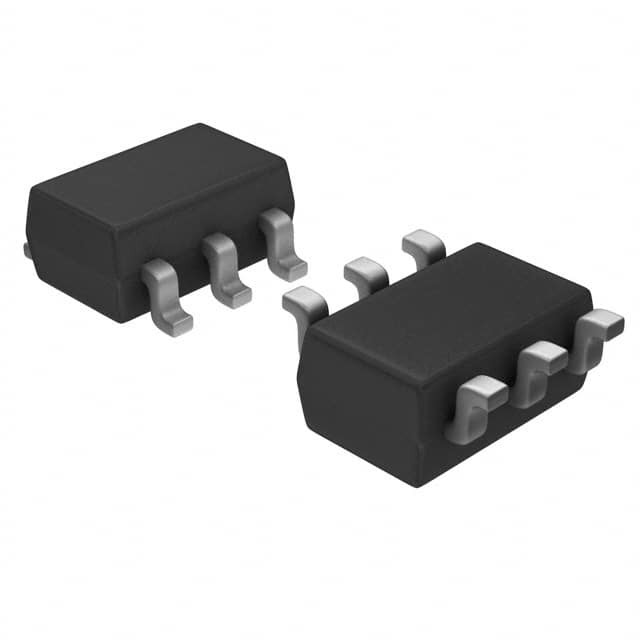

ADG819BRTZ-REEL

SKU: 22904

Manufacturer: Analog Devices

Analog Switch/Analog Multiplexer Single 2:1 Automotive 6-Pin SOT-23 T/R

1400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Type	Analog Switch
Switch Architecture	SPDT
Number of Channels per Chip	1
Number of Inputs per Chip	2
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	60@3.6V
Maximum Turn-Off Time (ns)	16@5V
Maximum Frequency (25°C) @ Vcc (MHz)	17(Typ)@5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Typical Supply Current (mA)	0.000001@5.5V
Maximum Supply Current (mA)	0.001@5.5V@-40C to 125C
Maximum High Level Output Current (mA)	200
Maximum On Resistance (Ohm)	1.4@3.6V
Maximum On Resistance Range (Ohm)	1 to 5
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	6
