ADG758BCP

SKU: 79447

Manufacturer: Analog Devices

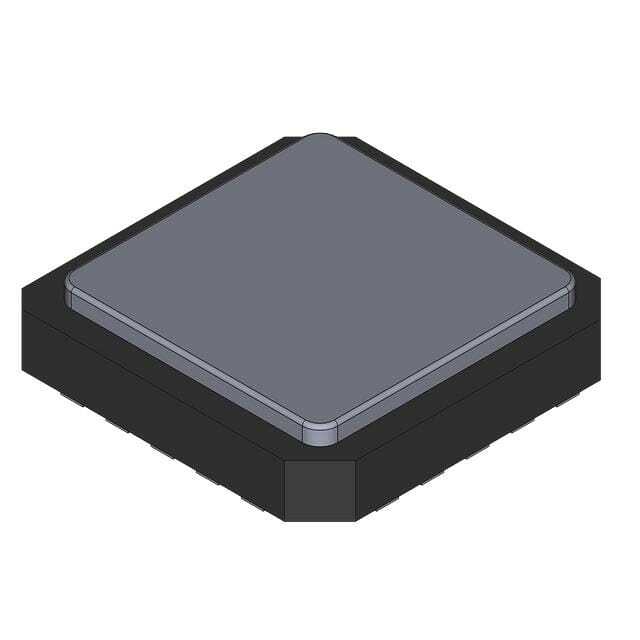

Analog Multiplexer Single 8:1 20-Pin LFCSP EP

3630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	8
Number of Outputs per Chip	1
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	14(Typ)@5V
Maximum Turn-On Time (ns)	18(Typ)@3V
Maximum Turn-Off Time (ns)	8(Typ)@3V
Maximum Frequency (25°C) @ Vcc (MHz)	55(Typ)@5V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±2.5
Maximum Dual Supply Voltage (V)	±2.75
Typical Supply Current (mA)	0.000001@5.5V
Maximum Supply Current (mA)	0.001@5.5V@-40C to 85C
Maximum High Level Output Current (mA)	30
Maximum On Resistance (Ohm)	11@3V
Maximum On Resistance Range (Ohm)	10 to 25
Propagation Delay Test Condition (pF)	35
Power Supply Type	Dual
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	LFCSP EP
Pin Count	20
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	20
