ADG5436FBRUZ-RL7

SKU: 100661

Manufacturer: Analog Devices

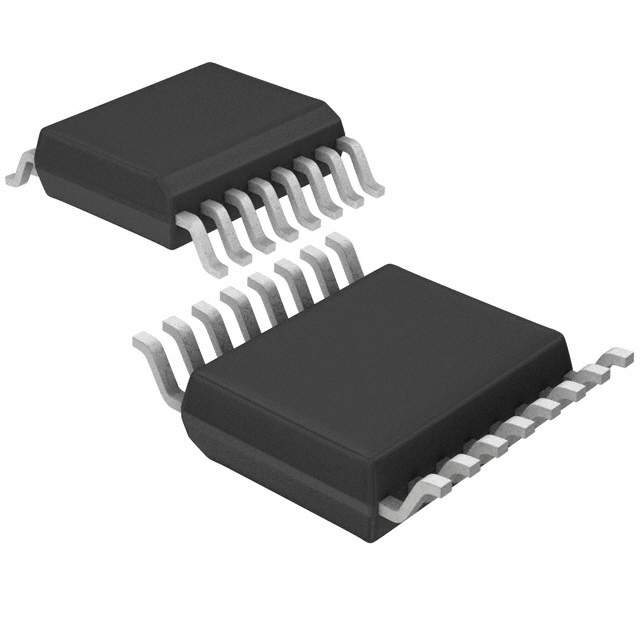

Analog Switch Dual SPDT 16-Pin TSSOP T/R

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Dual SPDT
Switch Architecture	SPDT
Number of Channels per Chip	2
Number of Inputs per Chip	2
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	545@12V
Maximum Turn-On Time (ns)	535@±20V
Maximum Turn-Off Time (ns)	230@12V
Maximum Frequency (25°C) @ Vcc (MHz)	169(Typ)@±15V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	8
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	44
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	0.9@16.5V/-0.5@-16.5V
Maximum Supply Current (mA)	1.2@16.5V/-0.65@-16.5V
Maximum On Resistance (Ohm)	24.5@10.8V
Maximum On Resistance Range (Ohm)	10 to 25
Propagation Delay Test Condition (pF)	35
Power Supply Type	Dual
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5
Package Width	4.4
PCB changed	16
