ADG5213BRUZ-RL7

SKU: 24662

Manufacturer: Analog Devices

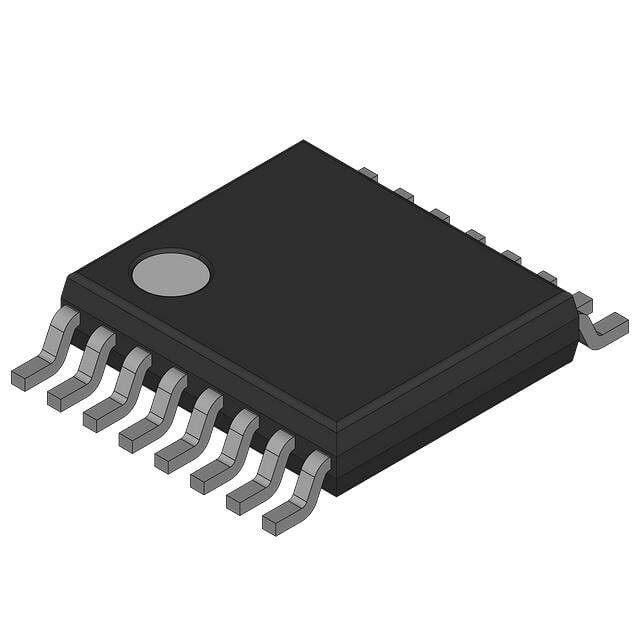

Analog Switch Quad SPST 16-Pin TSSOP T/R

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	230@36V
Maximum Turn-Off Time (ns)	215@36V
Maximum Frequency (25°C) @ Vcc (MHz)	340(Typ)@12V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	9
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	40
Minimum Dual Supply Voltage (V)	±9
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	0.045@16.5V/-0.000001@-16.5V
Maximum Supply Current (mA)	-0.001@-16.5V@-40C to 125C/0.055@16.5V
Maximum On Resistance (Ohm)	500@12V
Maximum On Resistance Range (Ohm)	400 to 1000
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5
Package Width	4.4
PCB changed	16
