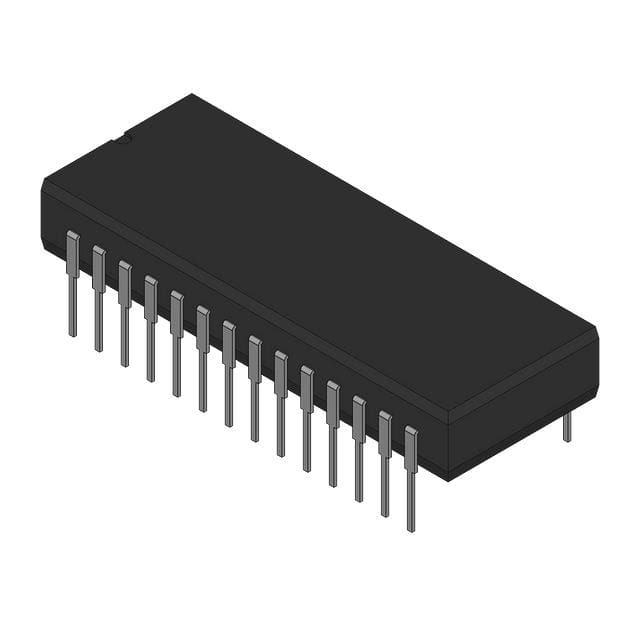

ADG507AKR

SKU: 143232

Manufacturer: Analog Devices

Analog Multiplexer Single 8:1 Automotive 28-Pin SOIC W Tube

350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	16
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	300@±16.5V
Maximum Turn-On Time (ns)	450@16.5V
Maximum Turn-Off Time (ns)	450@16.5V
Input Signal Type	Differential
Output Signal Type	Differential
Minimum Single Supply Voltage (V)	10.8
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	16.5
Minimum Dual Supply Voltage (V)	±10.8
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±16.5
Typical Supply Current (mA)	0.6@16.5V/-0.02@-16.5V
Maximum Supply Current (mA)	1.5@16.5V/-0.2@-16.5V@-40C to 85C
Maximum High Level Output Current (mA)	20
Maximum On Resistance (Ohm)	700@16.5V
Maximum On Resistance Range (Ohm)	400 to 1000
Power Supply Type	Single
Maximum Power Dissipation (mW)	470
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	18.1(Max)
Package Width	7.6(Max)
PCB changed	28
