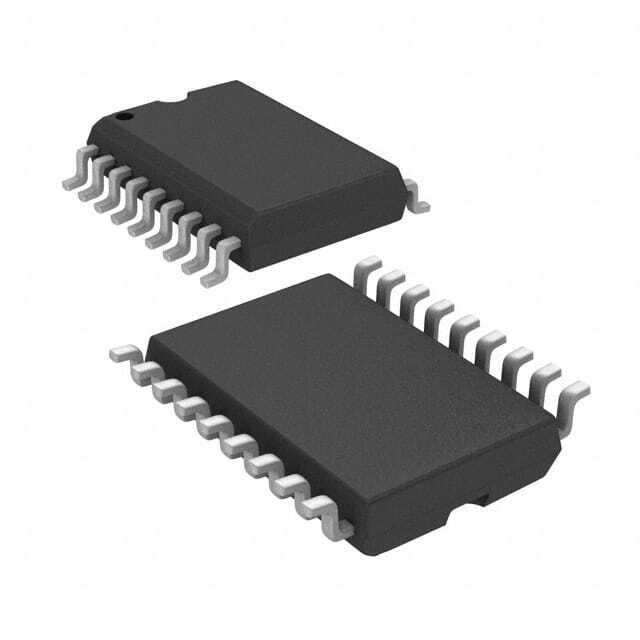

ADG467BRZ-REEL

SKU: 30010

Manufacturer: Analog Devices

Analog Switch Octal SPST 18-Pin SOIC W T/R

2090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Octal SPST
Switch Architecture	SPST
Number of Channels per Chip	8
Number of Inputs per Chip	8
Number of Outputs per Chip	8
Chip Enable Signals	Yes
Polarity	Non-Inverting
Input Signal Type	Single
Output Signal Type	Single
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±20
Typical Supply Current (mA)	±0.00005@±15V
Maximum Supply Current (mA)	±0.0005@±15V
Maximum On Resistance (Ohm)	95@±15V
Maximum On Resistance Range (Ohm)	80 to 100
Power Supply Type	Dual
Maximum Power Dissipation (mW)	800(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	18
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	11.75(Max)
Package Width	7.6(Max)
PCB changed	18
