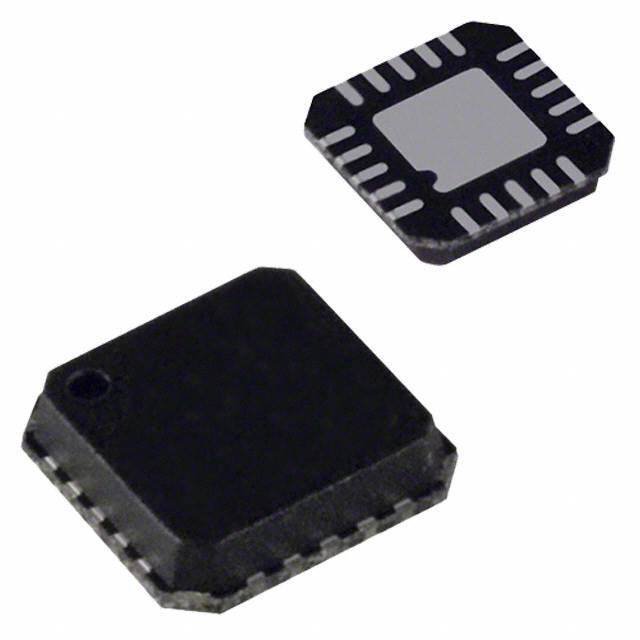

ADG3304BCPZ-REEL

SKU: 45981

Manufacturer: Analog Devices

Voltage Level Translator 4-CH Bidirectional 20-Pin LFCSP EP T/R

930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Function	Voltage Level Translator
Channel Type	Bidirectional
Number of Channels	4
Maximum Propagation Delay Time @ Maximum CL (ns)	25@1.15V to 1.3V@1.8V
Absolute Propagation Delay Time (ns)	35
Minimum High Level Input Voltage (V)	1.7
Output Type	3-State
Maximum Low Level Output Current (mA)	0.02
Maximum High Level Output Current (mA)	-0.02
Operating Supply Voltage-Min (V)	1.15/1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.005
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended Industrial
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	20
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	20
