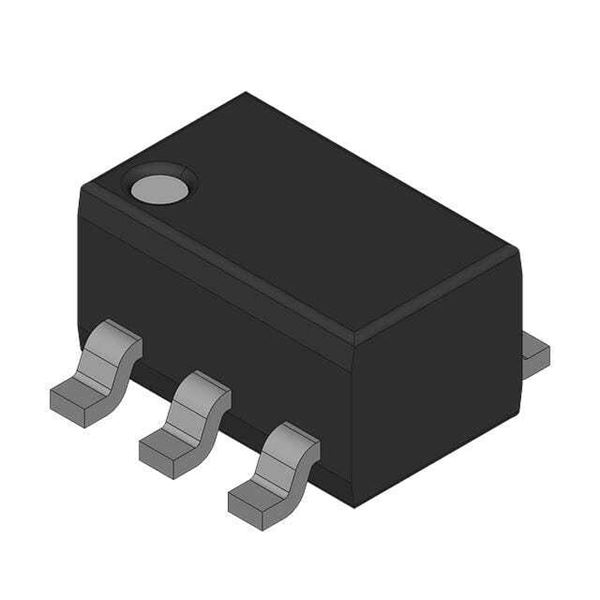

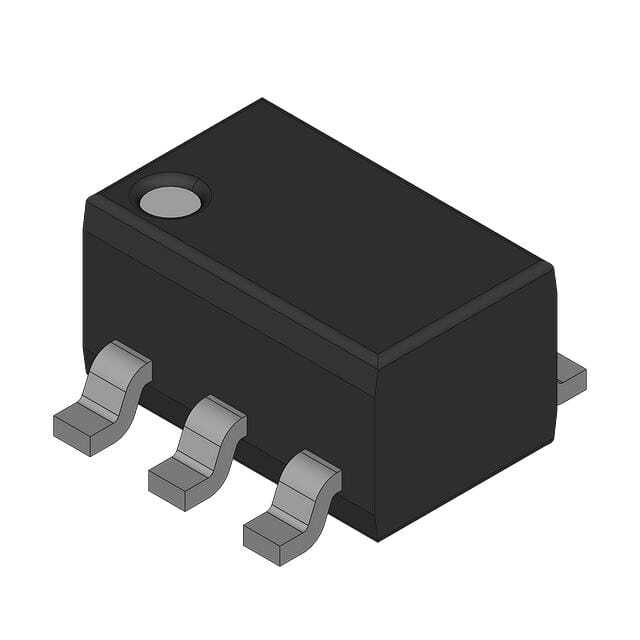

ADG3241BKSZ-REEL7

SKU: 116585

Manufacturer: Analog Devices

Bus Switch 1-Element CMOS 1-IN 6-Pin SC-70 T/R

3810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Function	Bus Switch
Number of Elements per pcs	1
Number of Inputs per Chip	1
Number of Outputs per Chip	1
Absolute Propagation Delay Time (ns)	4.6
Process Technology	CMOS
Maximum Propagation Delay Time @ Maximum CL (ns)	0.225@3V
Maximum On Resistance (Ohm)	12(Typ)
Maximum High Level Output Current (mA)	-25
Maximum Low Level Output Current (mA)	25
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (uA)	200
Typical Quiescent Current (uA)	100
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT-323
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	6
