ADG211AKN

SKU: 109453

Manufacturer: Analog Devices

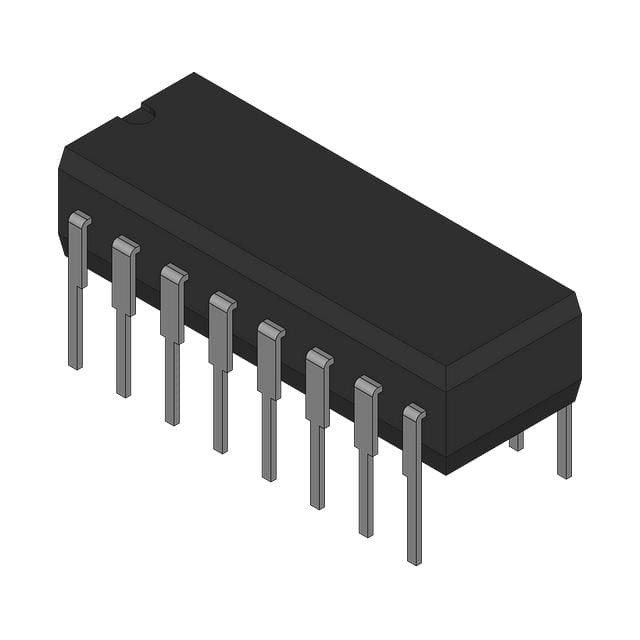

Analog Switch Quad SPST 16-Pin PDIP N Tube

50 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	600@±15V
Maximum Turn-Off Time (ns)	450@±15V
Input Signal Type	Single
Output Signal Type	Single
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	25
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	0.6@15V/-0.1@-15V
Maximum Supply Current (mA)	1@15V/-0.2@-15V
Maximum High Level Output Current (mA)	30
Maximum On Resistance (Ohm)	115@±15V
Maximum On Resistance Range (Ohm)	100 to 150
Power Supply Type	Single
Maximum Power Dissipation (mW)	470
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	PDIP N
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.3
Package Length	19.18
Package Width	6.35
PCB changed	16
