ADG201AKPZ

SKU: 137938

Manufacturer: Analog Devices

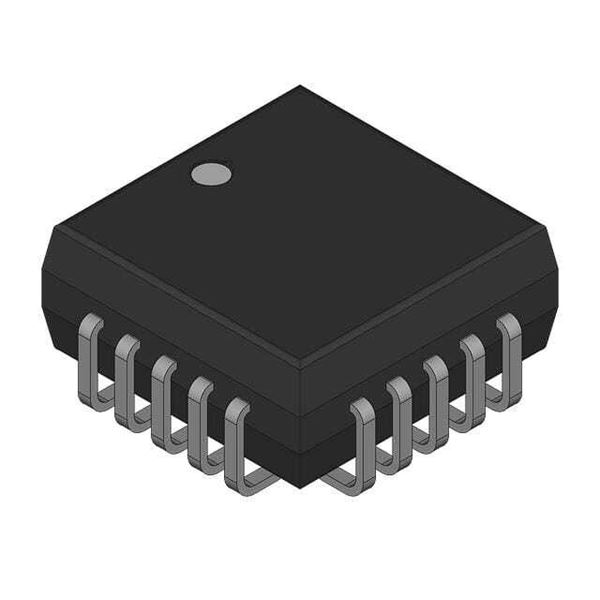

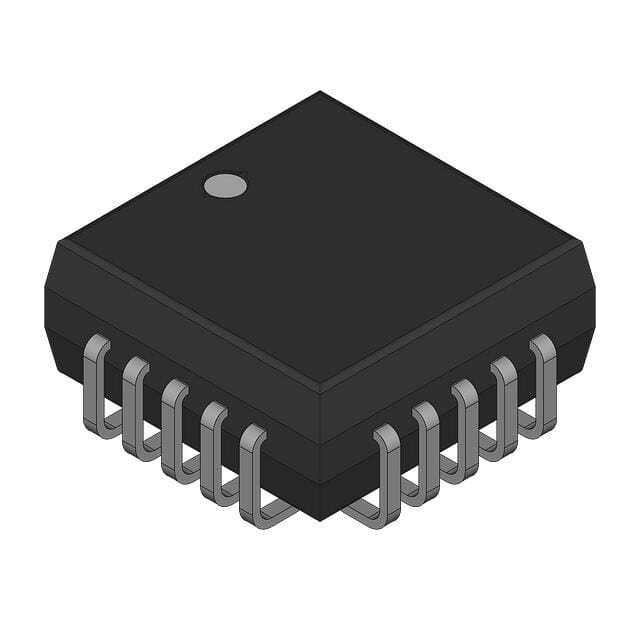

Analog Switch Quad SPST 20-Pin PLCC Tube

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	300@±15V
Maximum Turn-Off Time (ns)	250@±15V
Input Signal Type	Single
Output Signal Type	Single
Maximum Single Supply Voltage (V)	25
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	0.6@15V/-0.1@-15V
Maximum Supply Current (mA)	2@15V/-0.2@-15V@-40C to 85C
Maximum High Level Output Current (mA)	30
Maximum On Resistance (Ohm)	90@±15V
Maximum On Resistance Range (Ohm)	80 to 100
Power Supply Type	Single
Maximum Power Dissipation (mW)	470
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	20
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20

Your name

Your email

Enquiry

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	300@±15V
Maximum Turn-Off Time (ns)	250@±15V
Input Signal Type	Single
Output Signal Type	Single
Maximum Single Supply Voltage (V)	25
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	0.6@15V/-0.1@-15V
Maximum Supply Current (mA)	2@15V/-0.2@-15V@-40C to 85C
Maximum High Level Output Current (mA)	30
Maximum On Resistance (Ohm)	90@±15V
Maximum On Resistance Range (Ohm)	80 to 100
Power Supply Type	Single
Maximum Power Dissipation (mW)	470
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	20
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20
