ADG1409YRUZ-REEL

SKU: 72420

Manufacturer: Analog Devices

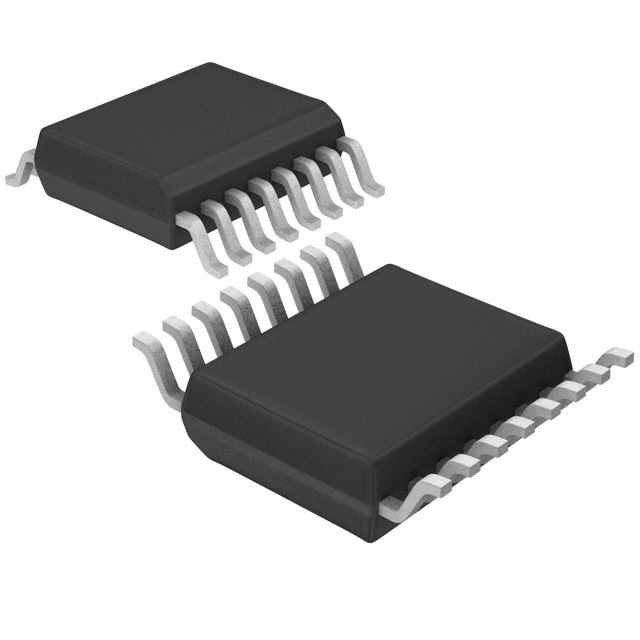

Analog Multiplexer Dual 4:1 16-Pin TSSOP T/R

2170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	2
Number of Inputs per Chip	8
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	170@±15V
Maximum Turn-On Time (ns)	330@±5V
Maximum Turn-Off Time (ns)	285@±5V
Maximum Frequency (25°C) @ Vcc (MHz)	115(Typ)@±15V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	16.5
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±16.5
Typical Supply Current (mA)	±0.000001@±5.5V
Maximum Supply Current (mA)	±0.001@±5.5V@-40C to 125C
Maximum On Resistance (Ohm)	9@±4.5V
Maximum On Resistance Range (Ohm)	5 to 10
Propagation Delay Test Condition (pF)	35
Power Supply Type	Dual
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5
Package Width	4.4
PCB changed	16
