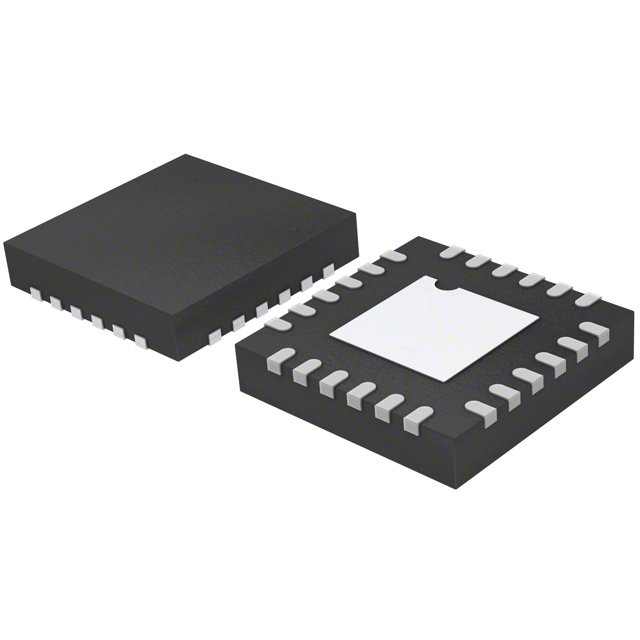

ADF4159WCCPZ-RL7

SKU: 37093

Manufacturer: Analog Devices

Clock Generator 500MHz to 13GHz-IN 2000MHz-OUT Automotive 24-Pin LFCSP EP T/R

1470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Number of Outputs per Chip	1
Clock Input Frequency (MHz)	500 to 13000
Maximum Output Frequency (MHz)	2000
Input Logic Level	TTL
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.45
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Maximum Supply Current (mA)	40
Pin Count	24
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	24
