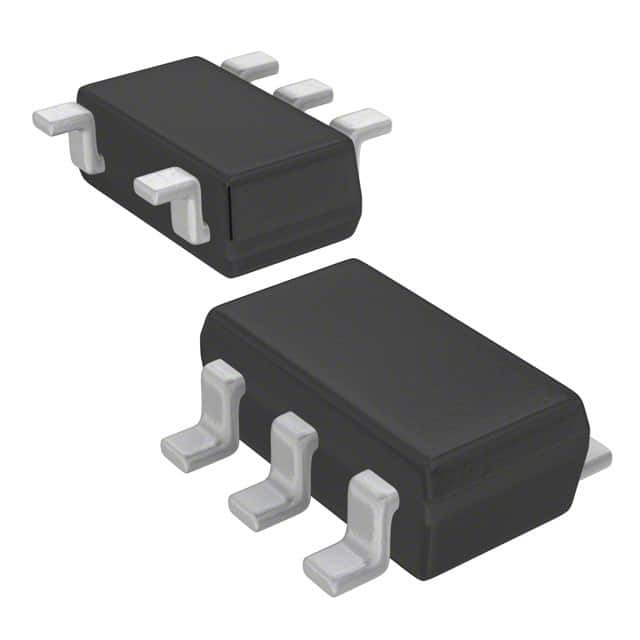

ADCMP600BRJZ-R2

SKU: 81170

Manufacturer: Analog Devices

Comparator Single R-R I/O 5.5V 5-Pin SOT-23 T/R

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	High Speed Comparator
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Process Technology	XFCB2
Typical CMRR (dB)	50(Min)
Typical PSRR (dB)	50(Min)
Maximum Propagation Delay Time (ns)	5(Typ)
Output Type	CMOS/TTL
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	5@2.5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Typical Voltage Gain (dB)	85
Typical Voltage Gain Range (dB)	70 to 90
Maximum Input Bias Current (uA)	5@2.5V
Maximum Supply Current (mA)	4@5.5V
Typical Output Current (mA)	50(Max)
Maximum Test Temperature (°C)	125
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SOT-23
Pin Count	5
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	5
