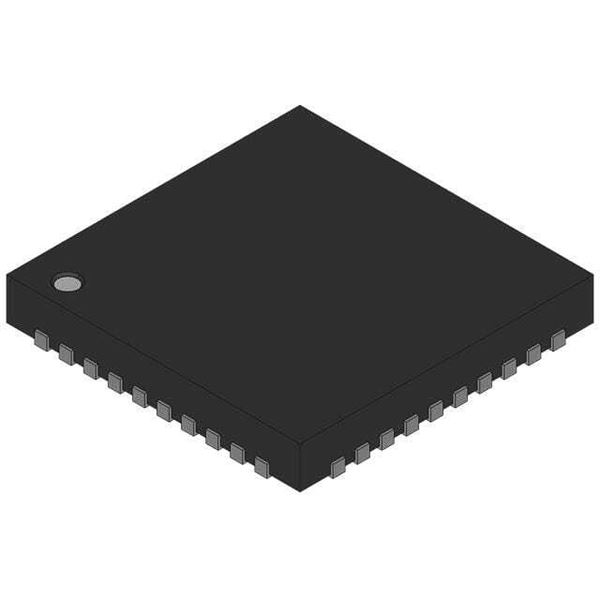

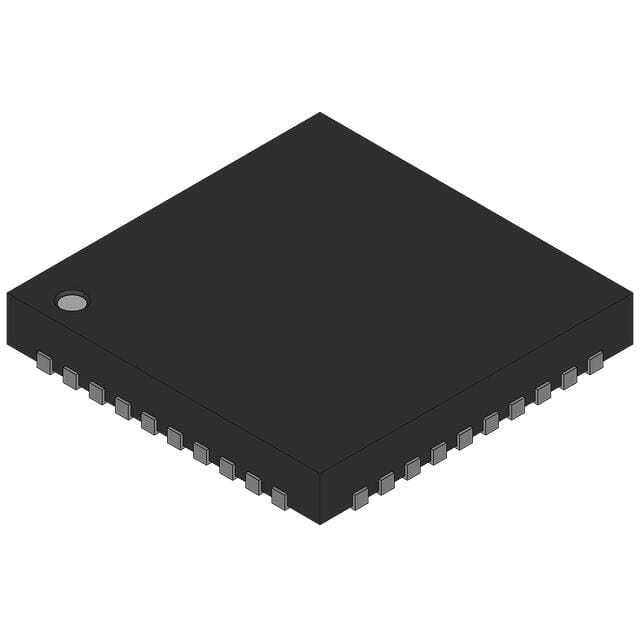

ADAU1978WBCPZ

SKU: 44187

Manufacturer: Analog Devices

4-Channel Quad ADC Delta-Sigma 192ksps 24-bit Serial Automotive 40-Pin LFCSP EP Tray

3150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Converter Type	Audio
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	4
Number of Input Channels	4
Sampling Rate	192ksps
Digital Interface Type	Serial (4-Wire)
Input Type	Voltage
Input Signal Type	Pseudo-Differential
Voltage Reference	Internal
Voltage Supply Source	Single
Input Voltage	2Vrms
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Typical Power Dissipation (mW)	46.2
Full Scale Error	±10%FSR
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Supplier Temperature Grade	Automotive
Pin Count	40
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
PCB changed	40
