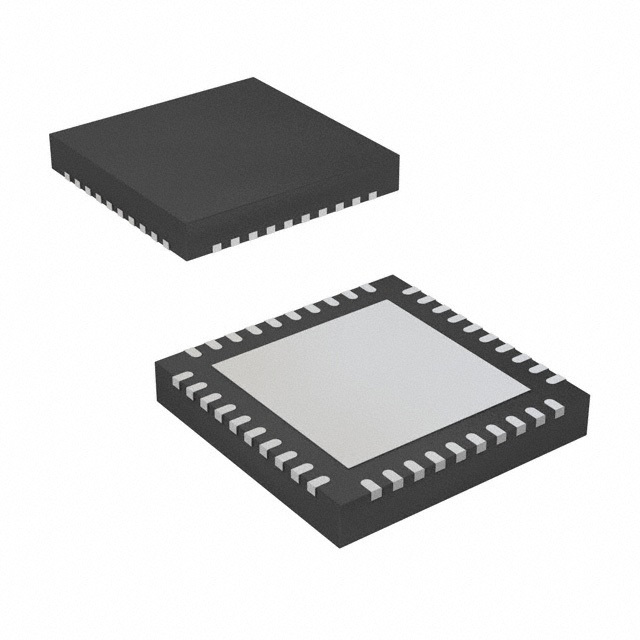

ADAU1772BCPZ-R7

SKU: 137916

Manufacturer: Analog Devices

General Purpose Audio Codec 4ADC / 2DAC Ch 40-Pin LFCSP EP T/R

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	General Purpose
ADC/DAC Resolution (bit)	24
Number of Channels	4ADC / 2DAC
Number of ADCs	4
Number of DACs	2
Number of ADC Inputs	4
Number of DAC Outputs	2
Sampling Rate (ksps)	192
Signal to Noise Ratio (dB)	108
Total Harmonic Distortion Plus Noise (THD+N) (dB)	-96
Interface Type	Serial (I2C, I2S, SPI)
Operating Supply Voltage-Min (V)	1.045
Typical Operating Supply Voltage (V)	1.1
Operating Supply Voltage-Max (V)	1.98
Power Supply Type	Digital
Maximum Power Dissipation (mW)	15.5(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	40
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
PCB changed	40
