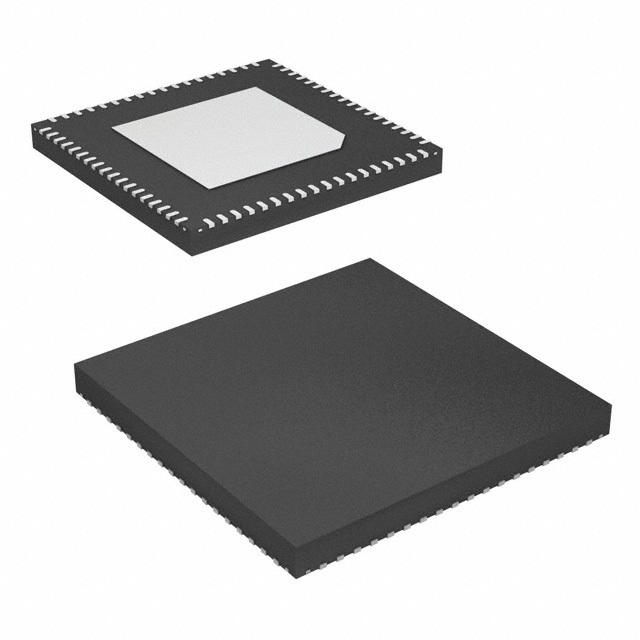

ADAU1452WBCPZ

SKU: 38837

Manufacturer: Analog Devices

DSP Fixed-Point 32bit 294.912MHz Automotive 72-Pin LFCSP EP Tray

6110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	ADAU1452
Numeric and Arithmetic Format	Fixed-Point
Data Bus Width (bit)	32
Program Memory Type	FLASH
RAM Size	160KB
Programmability	Yes
Interface Type	I2C/SPI
ADC Channels	6
ADC Resolution (bit)	10
Device Input Clock Speed (MHz)	294.912
USART	0
UART	0
USB	0
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Operating Supply Voltage-Min (V)	2.97
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.63
Minimum High Level Output Voltage (V)	3.09
Maximum High Level Output Voltage (V)	3.3
Minimum Low Level Output Voltage (V)	0
Maximum Low Level Output Voltage (V)	0.26
Maximum Power Dissipation (mW)	960
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Pin Count	72
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	10
Package Width	10
PCB changed	72
