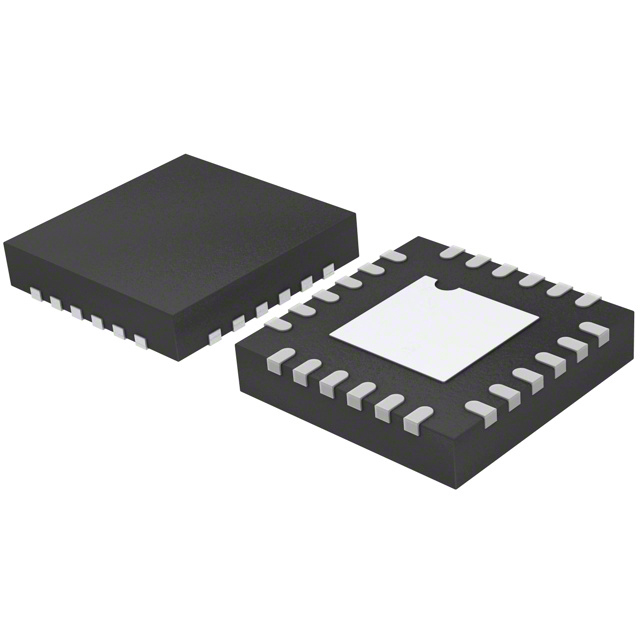

ADA4937-2YCPZ-R7

SKU: 95292

Manufacturer: Analog Devices

SP Amp DIFF AMP Dual 5.25V 24-Pin LFCSP EP T/R

10270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	2
Number of Channels per Chip	2
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	0
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	69
Minimum PSRR (dB)	70
Output Type	Complementary
Typical Output Current (mA)	100@5V
Maximum Input Offset Voltage (mV)	2.5@5V
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	5.25
Maximum Input Bias Current (uA)	30(Min)@5V
Maximum Input Resistance (MOhm)	6(Typ)@5V
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	24
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	24
