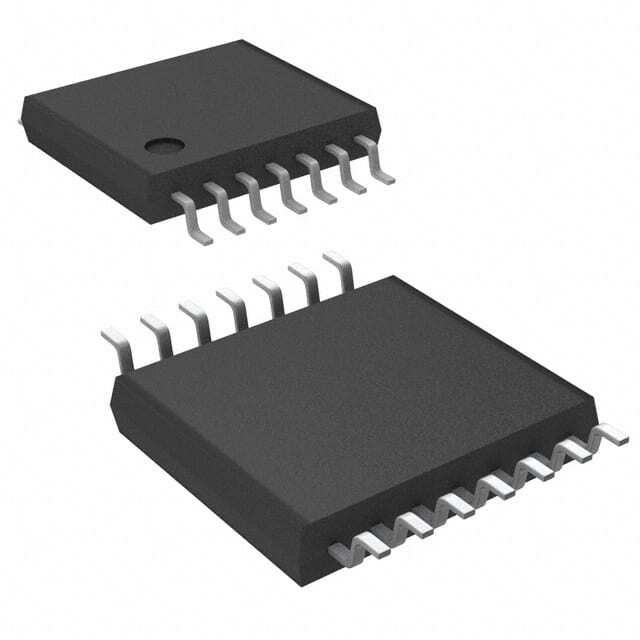

ADA4522-4ARUZ

SKU: 157422

Manufacturer: Analog Devices

Op Amp Quad Auto Zero/Chopper R-R O/P ±27.5V/55V 14-Pin TSSOP Tube

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Auto Zero/Chopper
Manufacturer Type	Zero Drift Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	0.005@5V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	55
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±2.5
Maximum Dual Supply Voltage (V)	±27.5
Typical Low Level Output Voltage (V)	0.02
Typical High Level Output Voltage (V)	4.98
Maximum Input Offset Current (uA)	0.00025@5V
Typical Input Bias Current (uA)	0.00005@5V
Maximum Input Bias Current (uA)	0.00015@5V
Maximum Quiescent Current (mA)	3.6@5V
Typical Output Current (mA)	14@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	1.4@5V
Typical Input Noise Voltage Density (nV/rtHz)	5.8@5V
Input Offset Voltage Drift (uV/°C)	30
Typical Voltage Gain (dB)	145
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.8@5V
Minimum PSRR (dB)	150
Minimum CMRR (dB)	135
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	2.7
Typical Settling Time (ns)	4000
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
PCB changed	14
