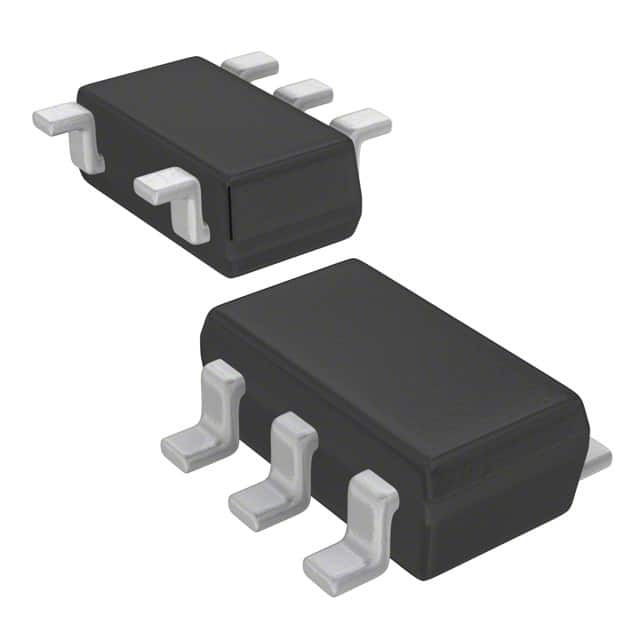

ADA4505-1ARJZ-R7

SKU: 81148

Manufacturer: Analog Devices

Op Amp Single Micropower Amplifier R-R I/O ±2.5V/5V 5-Pin SOT-23 T/R

3110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Output Type	CMOS
Maximum Input Offset Voltage (mV)	3@5V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5
Minimum Dual Supply Voltage (V)	±0.9
Maximum Dual Supply Voltage (V)	±2.5
Typical Low Level Output Voltage (V)	0.01
Typical High Level Output Voltage (V)	4.99
Maximum Input Offset Current (uA)	0.000001@5V
Typical Input Bias Current (uA)	0.0000005@5V
Maximum Input Bias Current (uA)	0.000002@5V
Maximum Supply Current (mA)	0.0105@5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	0.006@5V
Typical Input Noise Voltage Density (nV/rtHz)	65@5V
Input Offset Voltage Drift (uV/°C)	2(Typ)
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.02@5V
Minimum PSRR (dB)	100
Minimum CMRR (dB)	90
Minimum CMRR Range (dB)	90 to 95
Typical Gain Bandwidth Product (MHz)	0.05
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	5
