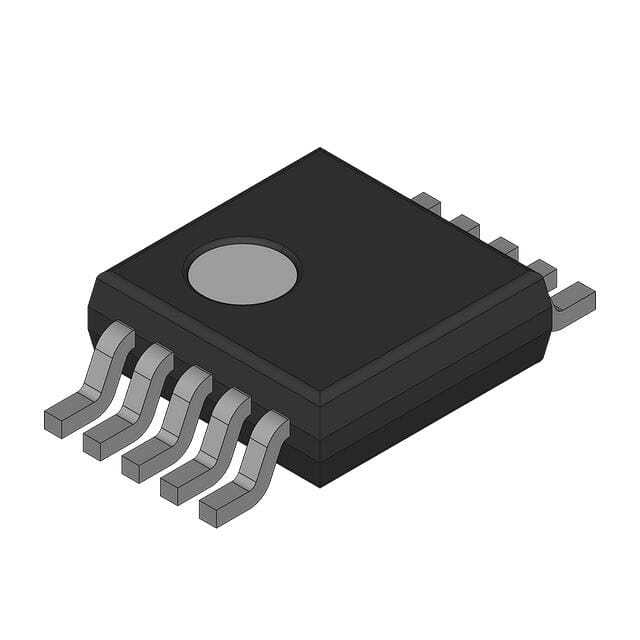

ADA4310-1ARHZ

SKU: 144926

Manufacturer: Analog Devices

Op Amp Dual Line Driver ±6V/12V 10-Pin MSOP EP Tube

8320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Line Driver
Manufacturer Type	Line Driver
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	1(Typ)@12V
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Typical Input Bias Current (uA)	2@12V
Maximum Quiescent Current (mA)	7.6(Typ)@12V
Power Supply Type	Dual
Typical Slew Rate (V/us)	820@12V
Typical Input Noise Voltage Density (nV/rtHz)	2.85@12V
Typical Noninverting Input Current Noise Density (pA/rtHz)	21.8@12V
Minimum CMRR (dB)	62(Typ)
Minimum CMRR Range (dB)	60 to 65
Typical Gain Bandwidth Product (MHz)	190
Shut Down Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	MSOP EP
Pin Count	10
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
