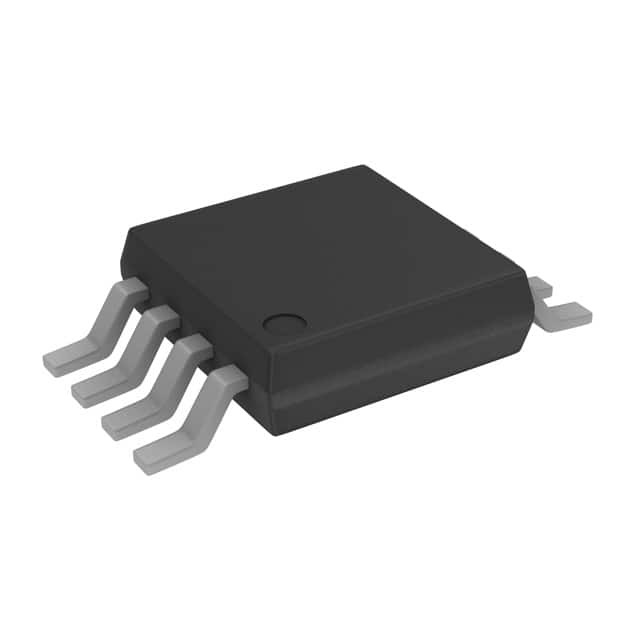

ADA4177-1ARMZ

SKU: 128981

Manufacturer: Analog Devices

Op Amp Single Precision Amplifier R-R O/P ±18V 8-Pin MSOP Tube

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	0.12@±5V
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.00075@±5V
Typical Input Bias Current (uA)	0.0004@±5V
Maximum Input Bias Current (uA)	0.001@±5V
Maximum Quiescent Current (mA)	0.56@±5V
Typical Output Current (mA)	25@±5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	1.5@±5V
Typical Input Noise Voltage Density (nV/rtHz)	10@±5V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.2@±5V
Minimum PSRR (dB)	125
Minimum CMRR (dB)	122
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	3.5
Typical Settling Time (ns)	3500
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	MSOP
Pin Count	8
Standard Package Method	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
