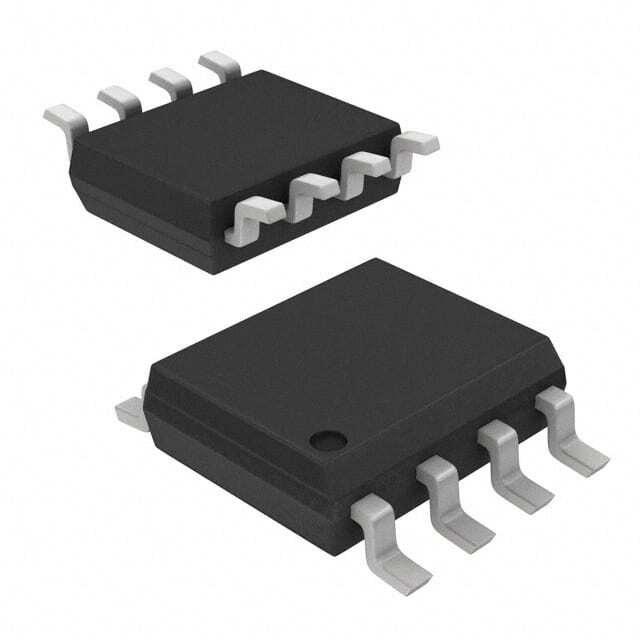

ADA4000-1ARZ-R7

SKU: 136109

Manufacturer: Analog Devices

Op Amp Single GP ±18V 8-Pin SOIC N T/R

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	1
Process Technology	JFET
Maximum Input Offset Voltage (mV)	1.7@±5V
Minimum Dual Supply Voltage (V)	±4
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±18
Typical Low Level Output Voltage (V)	-3.45
Typical High Level Output Voltage (V)	4.2
Maximum Input Offset Current (uA)	0.00004@±5V
Maximum Input Bias Current (uA)	0.00004@±5V
Maximum Supply Current (mA)	1.65@±5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	20@±5V
Typical Input Noise Voltage Density (nV/rtHz)	16@±5V
Input Offset Voltage Drift (uV/°C)	2(Typ)
Typical Voltage Gain (dB)	114
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.01@±5V
Minimum PSRR (dB)	82
Minimum CMRR (dB)	72
Minimum CMRR Range (dB)	71 to 75
Typical Gain Bandwidth Product (MHz)	5
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
