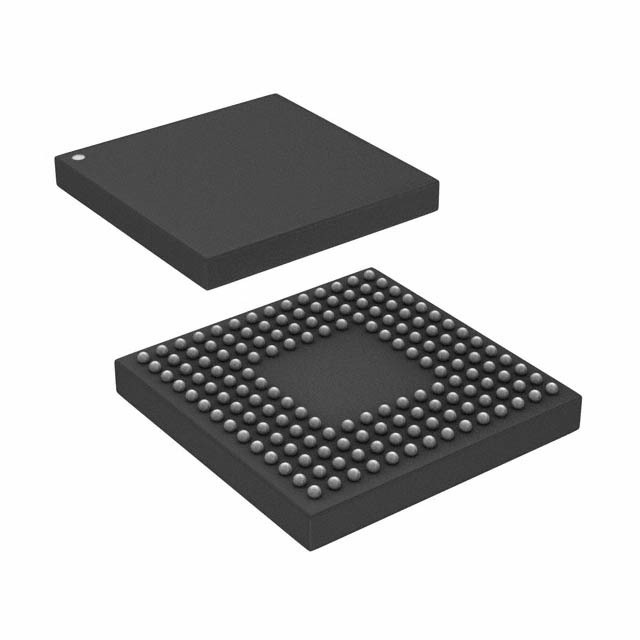

AD9735BBCZ

SKU: 100636

Manufacturer: Analog Devices

DAC 1-CH Interpolation Filter 12-bit 160-Pin CSP-BGA Tray

2990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Interpolation Filter
Resolution	12bit
Conversion Rate	1.2Gsps
Number of DAC Channels	1
Number of Outputs per Chip	1
Digital Interface Type	Parallel
Output Type	Current
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	3.13
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.47
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	550(Typ)
Integral Nonlinearity Error	±1.5LSB
Full Scale Error	±1%FSR(Typ)
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	CSP-BGA
Pin Count	160
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	12
Package Width	12
PCB changed	160
