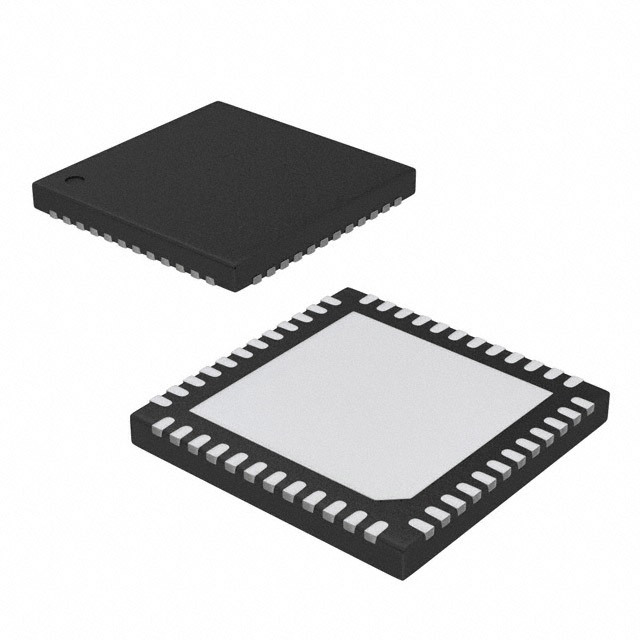

AD9287ABCPZ-100

SKU: 44168

Manufacturer: Analog Devices

4-Channel Quad ADC Pipelined 100Msps 8-bit Serial 48-Pin LFCSP EP Tray

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	8bit
Number of ADCs	4
Number of Input Channels	4
Sampling Rate	100Msps
Digital Interface Type	Serial
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	2Vp-p
Minimum Single Supply Voltage (V)	1.7
Typical Single Supply Voltage (V)	1.8
Maximum Single Supply Voltage (V)	1.9
Typical Power Dissipation (mW)	530
Maximum Power Dissipation (mW)	562
Integral Nonlinearity Error	±0.65LSB
Full Scale Error	±6%FSR(Typ)
Signal to Noise Ratio	49.2dB(Typ)
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	LFCSP EP
Pin Count	48
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	7
Package Width	7
PCB changed	48
