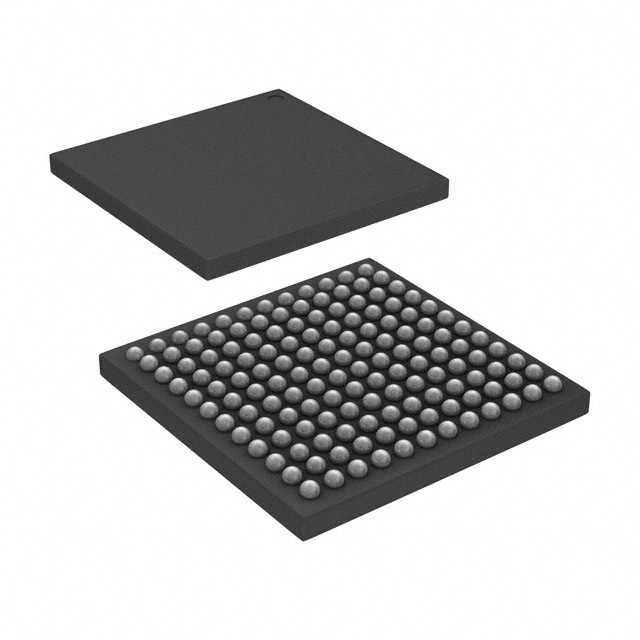

AD9249BBCZ-65

SKU: 79411

Manufacturer: Analog Devices

16-Channel Hexadecimal ADC Pipelined 65Msps 14-bit Serial 144-Pin CSP-BGA Tray

2200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.c.3
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	16
Number of Input Channels	16
Sampling Rate	65Msps
Digital Interface Type	Serial
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Single
Input Voltage	2Vp-p
Minimum Single Supply Voltage (V)	1.7
Typical Single Supply Voltage (V)	1.8
Maximum Single Supply Voltage (V)	1.9
Typical Power Dissipation (mW)	924
Maximum Power Dissipation (mW)	995
Integral Nonlinearity Error	±3LSB
Full Scale Error	-7.2/0.2%FSR
Signal to Noise Ratio	75.4dBFS(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Original Package	CSP-BGA
Pin Count	144
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1(Min)
Package Length	10
Package Width	10
PCB changed	144
