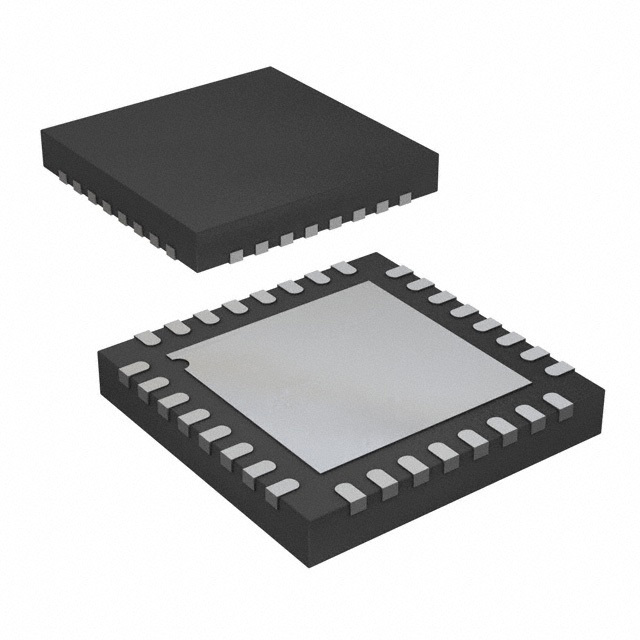

AD9245BCPZ-20

SKU: 157416

Manufacturer: Analog Devices

1-Channel Single ADC Pipelined 20Msps 14-bit Parallel 32-Pin LFCSP EP Tray

3130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991c.3.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	20Msps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	1Vp-p/2Vp-p
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Maximum Power Dissipation (mW)	414
Integral Nonlinearity Error	±3.1LSB
Full Scale Error	±3.25%FSR
Signal to Noise Ratio	73.5dB(Typ)
No Missing Codes (bit)	14
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Supplier Temperature Grade	Industrial
Pin Count	32
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
