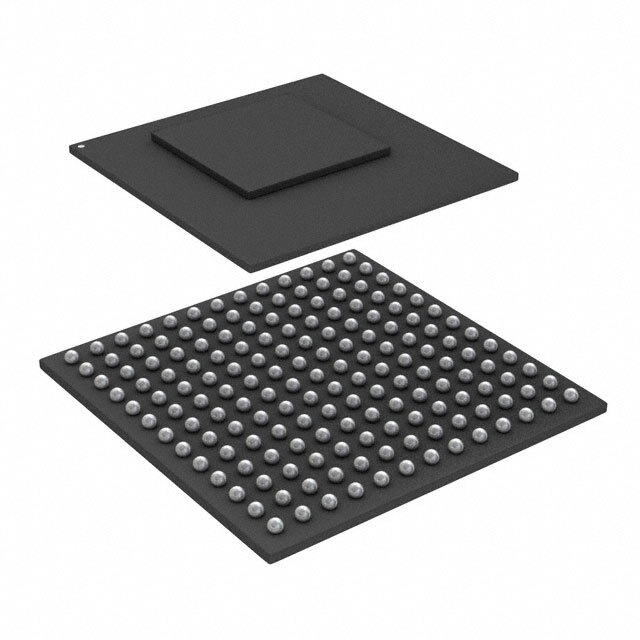

AD9162BBCAZ

SKU: 15853

Manufacturer: Analog Devices

DAC 1-CH Quad-Switch 16-bit 169-Pin CSP-BGA Tray

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001a.5.b.2.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	RF
Architecture	Quad-Switch
Resolution	16bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Digital Interface Type	JESD204B
Output Type	Current
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Dual Supply Voltage (V)	±1.14/2.375
Typical Dual Supply Voltage (V)	±1.2/2.5
Maximum Dual Supply Voltage (V)	-1.26/1.326/2.625
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1830
Integral Nonlinearity Error	±2.7LSB(Typ)
Full Scale Error	-1.7%FSR(Typ)
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	CSP-BGA
Pin Count	169
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.95(Max) - 0.31
Package Length	11
Package Width	11
PCB changed	169
