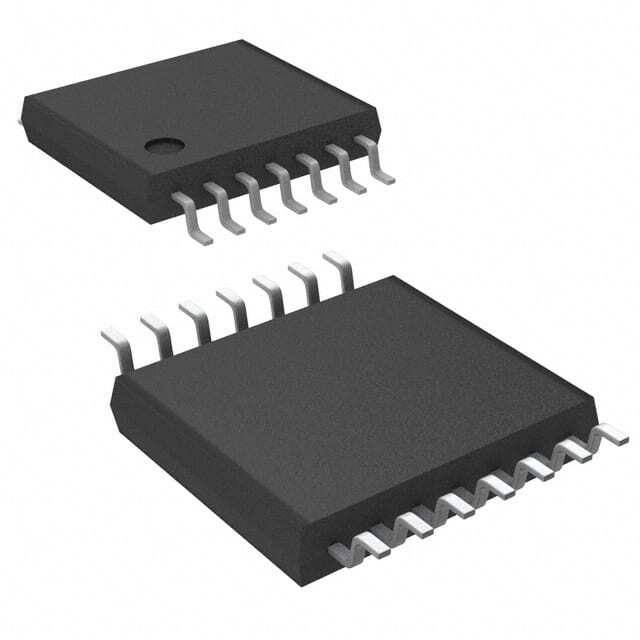

AD8609ARUZ

SKU: 95263

Manufacturer: Analog Devices

Op Amp Quad Low Noise Amplifier R-R I/O ±2.5V/5V 14-Pin TSSOP Tube

270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Noise Amplifier
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	0.3@5V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5
Minimum Dual Supply Voltage (V)	±0.9
Maximum Dual Supply Voltage (V)	±2.5
Typical Low Level Output Voltage (V)	0.16
Typical High Level Output Voltage (V)	4.97
Maximum Input Offset Current (uA)	0.0000005@5V
Typical Input Bias Current (uA)	0.0000002@5V
Maximum Input Bias Current (uA)	0.000001@5V
Maximum Supply Current (mA)	0.2@5V
Typical Output Resistance (Ohm)	36
Power Supply Type	Dual
Typical Slew Rate (V/us)	0.1@5V
Typical Input Noise Voltage Density (nV/rtHz)	25@5V
Input Offset Voltage Drift (uV/°C)	4.5
Typical Voltage Gain (dB)	113.06
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.05@5V
Minimum PSRR (dB)	80
Minimum CMRR (dB)	85
Minimum CMRR Range (dB)	85 to 90
Typical Gain Bandwidth Product (MHz)	0.4
Typical Settling Time (ns)	23000
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
PCB changed	14

Your name

Your email

Enquiry
