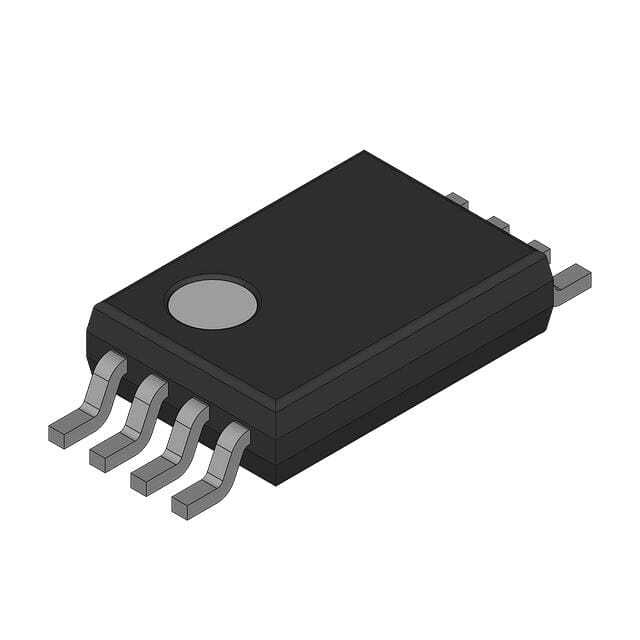

AD8561ARUZ-REEL

SKU: 38793

Manufacturer: Analog Devices

Comparator Single ±5V/10V 8-Pin TSSOP T/R

430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Ultra Fast Comparator
Number of Channels per Chip	1
Rail to Rail	No
Typical CMRR (dB)	85
Typical PSRR (dB)	65
Maximum Propagation Delay Time (ns)	9.8
Output Type	Complementary
Operating Supply Voltage-Max (V)	±5
Maximum Input Offset Voltage (mV)	7@5V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	10
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±5
Typical Voltage Gain (dB)	69.54
Typical Voltage Gain Range (dB)	40 to 70
Maximum Input Bias Current (uA)	6(Min)@5V
Maximum Supply Current (mA)	6@5V
Maximum Test Temperature (°C)	85
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	8
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3
Package Width	4.4
PCB changed	8
