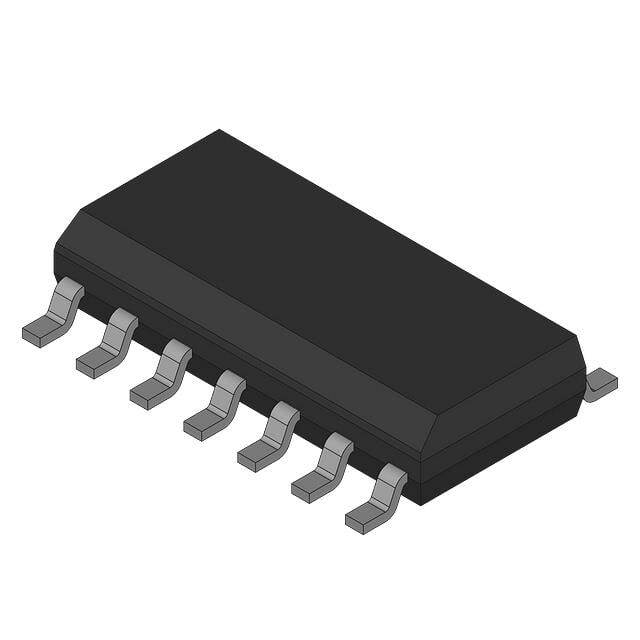

AD8554ARZ

SKU: 53048

Manufacturer: Analog Devices

Op Amp Quad Auto Zero/Chopper R-R I/O 5V 14-Pin SOIC N Tube

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Auto Zero/Chopper
Manufacturer Type	Zero Drift Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	0.005@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5
Maximum Input Offset Current (uA)	0.00007@5V
Typical Input Bias Current (uA)	0.00001@5V
Maximum Input Bias Current (uA)	0.00005@5V
Maximum Quiescent Current (mA)	3.9@5V
Typical Output Current (mA)	30@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.4@5V
Typical Input Noise Voltage Density (nV/rtHz)	42@5V
Typical Voltage Gain (dB)	145
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.002@5V
Minimum PSRR (dB)	120
Minimum CMRR (dB)	120
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	1.5
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
